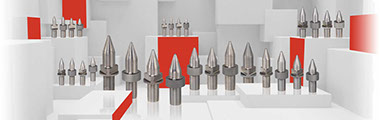

Fomdrill tools are made of a special carbide. Standard Formdrill tools are available from 1.8mm. up to 25.4mm. (0.070" - 1.000") diameter Larger drill sizes are available on request.

Formdrill tools can be used in most ferrous and non-ferrous metals including mild steel, stainless steel, copper, brass and aluminum. In general, all malleable materials can be thermal drilled.

Formdrill can be used in material thickness ranging from 1.0mm. up to 12.0mm. (0.040" - 0.500") depending on required hole size.

State of the art grinding technology ensures our tools are manufactured to the highest precision.

There are four types of standard formdrill tools: Short, Short/Flat, Long and Long/Flat:

Application

Used in round tubing, square tubing and sheet metal.

usAGE

Thin materials in combination with formtap. The initial tapered bushing guarantees 100% formed threads over the complete length of the Formdrill bushing. Bushing is straight (cylindrical) after tapping.

Application

Used in square tubing and sheet metal.

usAGE

Thin materials in combination with formtap. The initial tapered bushing guarantees 100% formed threads over the complete length of the Formdrill bushing. Bushing is straight (cylindrical) after tapping.

Application

Used In round tubing, square tubing
and sheet metal.

usAGE

Thicker material with formtap or with cutting taps. The short version Formdrills would produce bushings that are too tapered for tapping.

Application

In square tubing and sheet metal.

usAGE

Thicker material with formtap or with cutting taps. The short version Formdrills would produce bushings that are too tapered for tapping.
